4D jaw motion data in Dental Cad
Import MODJAW 4D data
in Exocad
Dynamic adaptation with protrusion
& laterotrusions
Dynamic adaptation to create
canine guidance
Frame by frame adaptation to create canine guidance
Anatomic morphing
with virtual imprints
Swap initial scans
with preparation scans
4D Jaw Motion data in Dental System
Import MODJAW 4D data
in 3shape Dental System
Frequently Asked Questions
This is where you will find most answers. If there should still be any questions left, don't hesitate to contact us.
General
How to use jaw motion data from MODJAW in EXOCAD ?

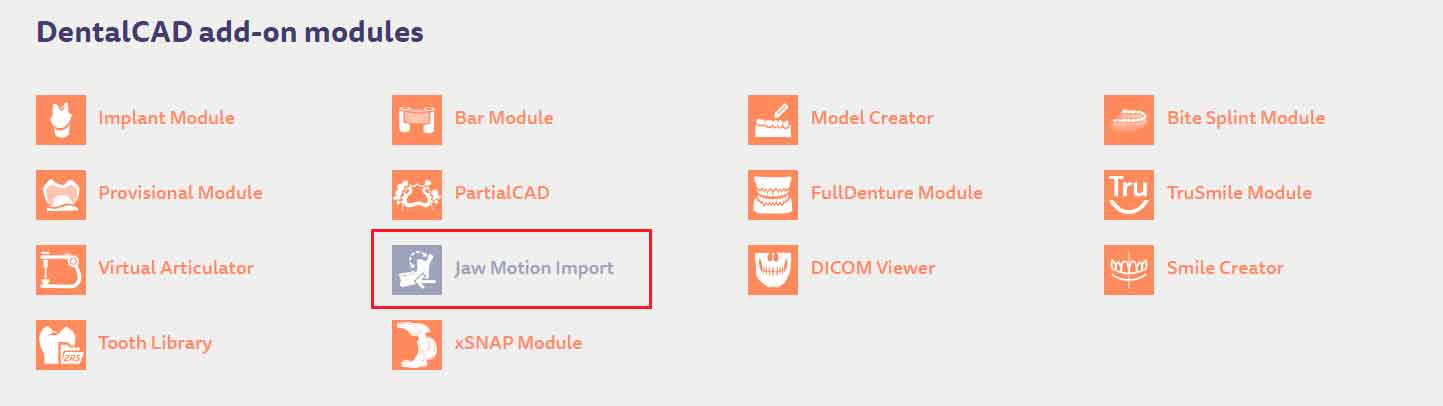

Use “Jaw motion import” add-on module in your dental cad to be able to import and use 4D data from MODJAW. Please contact your reseller if your license does not have it.
I get an unexpected result after dynamic adaptation, why ?
- Check that jaw movements are cropped to ensure an optimal design (motion cropping is done in Sphere)
- Check that the static occlusion is acceptable (areas with / without proximities, repartition, occlusal bite, absence of strong interpenetrations…).
SOFTWARE
Which software is recommended to use at the dental laboratory ?

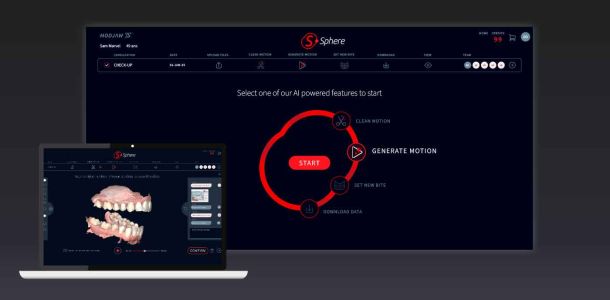

It is recommended to process jaw motion data in Sphere before importing the files in your cad/cam software to benefit the following :
- One click motion cropping
- One click motion generation
- Choosing a new vertical dimension
Check out how sphere works on our dedicated page !
